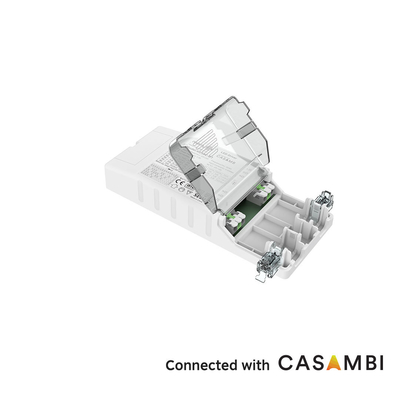

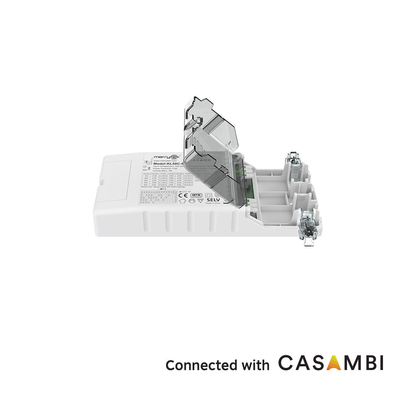

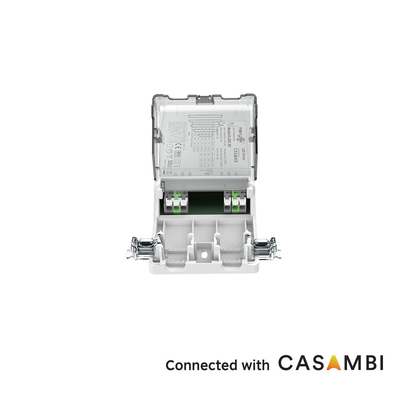

50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty

  • 50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty
  • 50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty
  • 50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty
Place of Origin China
Фирменное наименование Merrytek
Сертификация CE
Model Number KL50C-B1
Minimum Order Quantity 50PCS
Packaging Details bubble bag+carton
Delivery Time sample: 3-5 working days
Payment Terms T/T, L/C, PayPal
Supply Ability 40000pcs/ month

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Operating voltage 220-240Vac Input current 0.35A Max.
Inrush Current 25A MAX. Power factor ≥0.95
Output current 700-1400mA Accuracy ±5%
Communication Casambi Bluetooth mesh Transmitting distance 30m indoor
Warranty 5 years IP rating IP20
Оставьте сообщение
Характер продукции

50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty

【Product Feature】

*Comply with the Casambi smart lighting system

*Flicker-free for the whole dimming range

*Stand-by power below 0.5W

*Protection: short circuit / over temperature/ over voltage

*Derating the current for overly high ambient temperature

*Looping design, quick-wiring, convenient, and time-saving

*5-year warranty



【Parameters】

Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.35A Max.
Input Inrush Current <25A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.95
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac)
Efficiency(@230Vac,100% load) 88%
Wiring Method Wire cross section:0.75-2.5mm2
Loop-in&Loop-out quantity 22PCS(@230Vac)

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 40 50 /
type C10 C13 C16 C20 C25 C32
Number 28 40 45 55 70 90
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 72V DC Max.
Load output voltage range 9-58Vdc
Full load output power 50W Max.
Load output current 700mA(9-58Vdc) 800mA(9-58Vdc) 850mA(9-58Vdc) 900mA(9-56Vdc) 950mA(9-53Vdc) 1000mA(9-50Vdc) 1050mA(9-48Vdc) 1100mA(9-45Vdc) 1150mA(9-43Vdc) 1200mA(9-42Vdc) 1250mA(9-40Vdc) 1300mA(9-38Vdc) 1400mA(9-36Vdc)
Output Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Wire cross section:0.75-1.5mm2
Control Method Working frequency 2.4-2.48GHz
Transmitting power +8dBm Max.
Transmission distance Point-to-point transmission range 30m Max.
Modulation mode O-QPSK PHY
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function
Output short circuit protection Yes, without a self-recovery function

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 85% (Non-condensing)
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class I
Installation type Independent installation
Dimension 185*79*30mm
Packaging requirement PE bag + white box + manual + partition + outer box (K=A)
Weight 262.6±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

【Dimension】



50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty 050W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty 1

【Wiring】

50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty 2

【Derating】

50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty 3

【Output current setting】



Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4
700 - - - - 40.6 9～ 58
800 ON - - - 46.4 9～ 58
850 - ON - - 49.3 9～ 58
900 - - ON - 50.4 9～ 56
950 ON ON - - 50.4 9～ 53
1000 ON - ON - 50.0 9～ 50
1050 - ON ON - 50.4 9～ 48
1100 - ON - ON 49.5 9～ 45
1150 ON ON ON - 49.5 9～ 43
1200 ON ON - ON 50.4 9～ 42
1250 ON - ON ON 50.0 9～ 40
1300 - ON ON ON 49.4 9～ 38
1400 ON ON ON ON 50.4 9～ 36



【Application】

50W Casambi wireless mesh dimmable LED driver for constant current load with 5 years warranty 4

【ATTENTION】



1) The LED driver must be connected to the load before turning on the input power, otherwise, the LED driver may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
