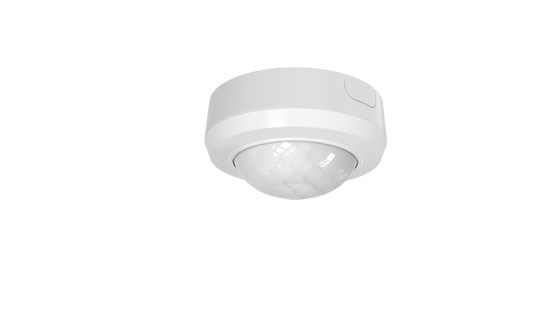

MSA250S IR High Bay PIR Motion Sensor
Professional high-mounting PIR motion sensor with daylight detection function, designed for mounting heights up to 30 meters with 360° detection coverage.
Product Overview
The MSA250S IR is a high-performance PIR motion sensor featuring Merrytek's exclusive super high lens technology. When installed at 3-30m heights, it achieves maximum 30m diameter detection coverage. Combined with advanced software algorithms, it accurately detects human movements in various industrial scenarios to trigger smart lighting applications.
Key Features
  • PIR motion detection with daylight sensor functionality
  • Accurate motion detection with single channel ON/OFF output
  • Detection area, hold time, and daylight threshold adjustable via rotation switch or remote control
  • Maximum detection range: 30-36m diameter at 10m height / 6-10m diameter at 30m height
  • 26A relay with maximum loading capacity: 2000W resistive and 1200W inductive
  • 2kV surge capacity protection
  • Surface mounting installation
  • Ideal for lobby, warehouse, and industrial motion detection applications
Technical Specifications
Input/Output Parameters
Input voltage 220-240V AC
Rated voltage 230V AC
Working current 20mA max
Power consumption ≤0.5W @230V AC
Output signal ON/OFF
Max surge voltage 2KV (L/N, EN61000-4-5)
Max surge current 75A (50% Ipeak, twidth =500us, 230Vac full load, cold start)
Max loading 2000W resistive loading and 1200W inductive loading @230Vac
Sensor Parameters
Function PIR motion detection + daylight sensor
Detection Area Rotation switch/MH10 remote setting: 100%/75%/50%/25%
Hold Time Rotation switch/MH10 remote setting: Test 2s/30s/1min/5min/10min/30min
Daylight Sensor Rotation switch/MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable
Radius detection range (100% range) 15-18m @25℃ based on 10m mounting height (tangential motion)
3-5m @25℃ based on 3m mounting height (tangential motion)
Daylight Priority Multiple settings from 50lux turn on/300lux turn off to 200lux turn on/600lux turn off
Remote control Available (MH10 remote)
Mounting heights 3-30m (typical value: 10m)
Application Environment
Installation Surface mounting
Working temperature -25℃ to +50℃ (detection range may vary with temperature)
Storage temperature -25℃ to +50℃, humidity ≤60% (non-condensation)
Wiring standard Wire diameter: 0.2-2.5mm², Wire stripping length: 5-8mm
Warranty 5 years (indoor applications)
Certification & Standards
Certificate CE UACK
Environmental requirements Compliant with RoHS
IP rating IP54
Product Dimensions

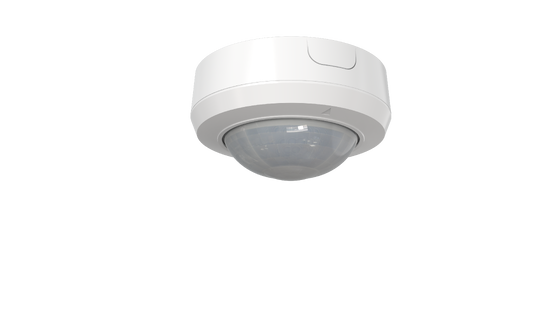

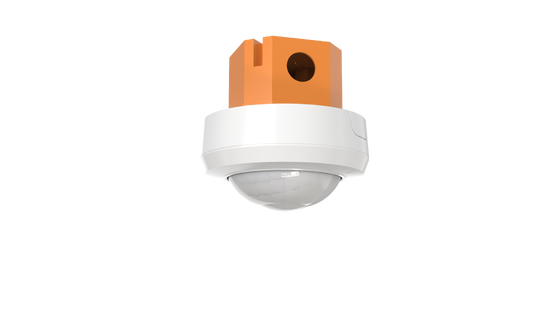

Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 0 Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 1
Wiring Diagram
Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 2
Important Wiring Notes:
1. LN terminal stands for AC input, L'N stands for AC output. Please wire correctly.
2. One sensor's maximum loading capacity is 2000W resistive and 1200W inductive for a single load. For additional loads in one loop, we recommend adding an AC contactor to the output LN terminal to avoid momentary surge overload.
Detection Radiation Pattern
Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 3
Detection Signal Information
The product detects human moving signals. Moving signal detection identifies significant human movement (walking) within the detection area.
Initialization Process
When powered on, the sensor indicator will turn off after flashing for 20 seconds. The sensor will not detect moving signals during this initialization period. After 20 seconds, you can use the rotation switch or remote control to adjust detection area, hold time, daylight sensor, and other parameters.
Factory Default Settings
Detection Area: 100%, ON/OFF terminal Hold Time: 2s, dry contact terminal Hold Time: 2s, Daylight threshold: Disabled, Indicator: ON
Rotation Switch Configuration
Detection Area Settings
Gear Detection Area
125%
250%
375%
4100%
Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 4
Hold Time Settings
Gear Hold Time
1Test 2s
230s
31min
45min
510min
630min
Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 5
Daylight Sensor Settings
Gear Daylight Threshold
15lux
215lux
330lux
450lux
5100lux
6150lux
7Disable
Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 6
Daylight Priority Settings
Gear Daylight Priority Setting
150lux ON / 300lux OFF
2100lux ON / 400lux OFF
3150lux ON / 500lux OFF
4200lux ON / 600lux OFF
5Disable
Max. mounting height up to 30m PIR High Bay 360° Sensor High bay PIR detectors 7
Installation & Usage Guidelines
  • Sensor must be installed by a professional electrician in a power-off state
  • Typical installation height is 10m for indoor use only
  • Install away from hot or rapidly changing temperature areas to avoid false triggers
  • Ensure no large objects within detection area (sensor cannot detect through objects)
  • Avoid placement near strong-reflect objects, wifi routers, microwave ovens to prevent false triggers
  • Detection area function is based on 25℃ environment temperature - performance varies with temperature changes
  • Detection optimized for tangential movement; radial movement detection range is shorter due to PIR characteristics
Disclaimer: Due to the complexity of product technology and differences in application environments, we cannot guarantee completely accurate or complete descriptions. This specification is for user reference only. We reserve the right to make changes to product specifications without notification and make no legal commitments or guarantees. We encourage users to supplement or modify specification contents based on their product usage experience. For more information, please contact our sales representative.
