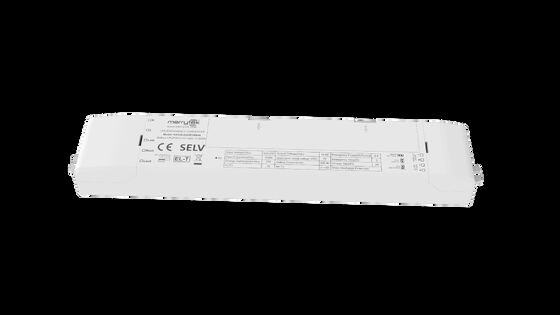

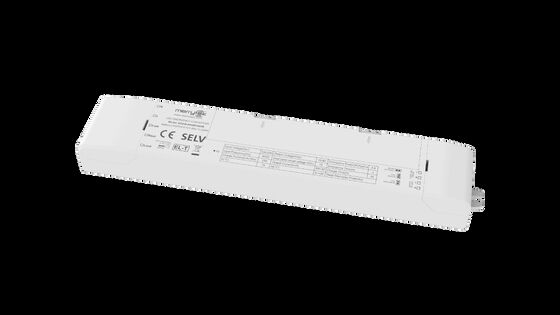

2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty

  • 2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty
  • 2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty
Место происхождения Китай
Фирменное наименование Merrytek
Сертификация CE, UKCA, UN38.3, MSDS
Номер модели KE036-02AM180HB1
Количество мин заказа 100
Цена Подлежит обсуждению
Упаковывая детали Сначала упакована в пузырьковый пакет, а затем усилена картонной упаковкой для наружной упаковки
Время доставки 1, образец и небольшой заказ: в течение 5 рабочих дней после получения оплаты. 2, объемный заказ: 3-
Условия оплаты T/T или Западный Союз
Поставка способности 101000 штук в месяц

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WECHAT: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Номинальное входное напряжение 220-240Vac 50Hz /60Hz Аварийная власть 2W ((Можно настроить)
Чрезвычайное время 180 мин (можно настроить) Гарантия 5 лет
Выходное напряжение нагрузки 50–220 В постоянного тока Рабочая температура 0 ℃ ~ 50 ℃
IP-рейтинг IP20 Тип батареи LifePO4 6,4 В 1800 мАч
Выделить

2W LED emergency driver

,

self test emergency pack

,

5 year warranty emergency driver
Оставьте сообщение
Характер продукции
2W Standard and Self Test Emergency Packs
Constant power output LED emergency power supply with a wide output voltage range, featuring LifePO4 battery technology with a 5-year warranty.
Product Features
  • Constant power output LED emergency power supply with wide output voltage range
  • Input relay switching
  • High safety, high performance, long life LifePO4 battery
  • Integrated battery management system
  • Standard and self-test emergency packs
Technical Parameters
Charge Part
Model No. KE036-02AM180HB1
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak) @230Vac (Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 250mA Max.
Battery charging time 24 hours Max.
Emergency Part
Operating mode Emergency mode
Load type LED
Emergency power 2W
Emergency time 3 hours
Load output current 40-9mA
Load output voltage 50-220Vdc
Battery
LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1.8Ah
Battery warranty Warranty 5 years @25℃
Product Dimensions
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 0
Unit: mm
Wiring Diagrams
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 1
Basic wiring diagram
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 2
Fig A: With LED driver and LED module
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 3
Fig B: With LED module
2W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 4
Fig C: Loop in & out with LED module
Operation Instructions
Manual Test Mode
  • Before installation, set Pin short: Manual Test
  • Connect the wire according to the wiring diagram
  • L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply is normal charging. Turn off Switch S1; the load lamp turns off
  • Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by LED driver, the indicator light will turn on
Automatic Test Mode
  • Before installation, set Pin open: Automatic Test
  • Connect the wire according to the wiring diagram. Remove the test switch on the LED Emergency Driver
  • L, N power on, start the clock, and perform a periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
  • The battery should be recharged and discharged semiannually in normal use conditions
  • Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board
  • Please keep the battery away from the heat source when installing and using, and only be allowed to be used in a certain working temperature range
  • The battery should be stored in a cool and dry environment
  • After long-term storage, the battery is cycled every 6 months as required
  • AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.
